Time and Attendance Rugged Biometric Mobile System

Time and Attendance Biometric Mobile System. ZKTeco S922 Secure Workforce Management in the Most Demanding Fields

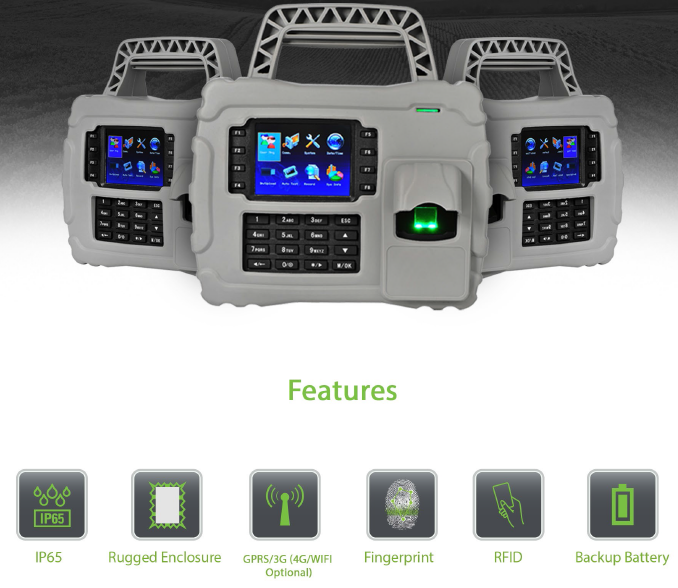

Time and Attendance Biometric Mobile System. ZKTeco S922

Download a Brochure Download User Manual

High-Performance Time and Attendance Biometric Mobile System

Managing a mobile workforce across remote construction zones, mining operations, and expansive agricultural sites presents unique logistical hurdles. Paper timesheets are easily damaged, easily lost, and prone to costly buddy-punching errors. Traditional wall-mounted biometric readers fail quickly when exposed to open-air dust, heavy rain, and accidental impact shocks.

Businesses require a centralized, mobile operational workflow that tracks employee hours reliably under extreme conditions. The ZKTeco S922 Portable Rugged Fingerprint Time & Attendance Terminal solves these exact field challenges. This heavy-duty biometric terminal delivers accurate, tamper-proof shift logging anywhere your field teams operate. It features robust wireless connectivity, massive storage vaults, and an ultra-tough outer shell engineered to withstand real-world workplace accidents.

Technical Specifications and Hardware Architecture, High-Performance Time and Attendance Biometric Mobile System

Processing Power and Storage Capacities

The internal architecture of this Time and Attendance Biometric Mobile System is built to manage massive field teams without experiencing system slowdowns. It holds a high-capacity internal database that safely stores 50,000 distinct fingerprint templates alongside 50,000 proximity ID card profiles.

This dual-verification architecture allows companies to run hybrid authentication programs, assigning biometric tracking to field laborers and RFID cards to temporary contractors or visitors. To prevent data losses during long off-grid deployments, the unit features an expanded internal flash memory bank capable of storing 800,000 individual transaction logs before requiring a system data purge.

Time and Attendance Biometric Mobile System, Optical Biometric Sensor Technology

At the center of the hardware array is the specialized ZK Optical Fingerprint Sensor running the advanced ZKFinger VX10.0 verification algorithm. This high-definition scanning system reads three-dimensional ridges accurately, matching prints in under one second.

The optical sensor surface is treated with a scratch-resistant coating, allowing it to read compromised prints. The system identifies wet, dry, or slightly soiled fingers, which reduces false rejection rates on active industrial job sites.

Hardware FeatureSpecification Details
Fingerprint Capacity50,000 Templates
ID Card Capacity50,000 Cards (EM Standard / Mifare Optional)
Transaction Logs800,000 Records
Biometric SensorZK Optical Sensor (ZKFinger VX10.0 Algorithm)
Display Screen3.5-inch TFT Color Screen
Internal Power Bank7,600 mAh Rechargeable Lithium-Ion Battery

Time and Attendance Biometric Mobile System. Ruggedized Engineering for Extreme Outdoor Operations

IP65 Waterproof and Dustproof Certification

The unit features an industrial-grade IP65-certified enclosure engineered to block microscopic debris and liquid moisture. The outer casing seals internal circuit boards against fine dust particles, blowing sand, and low-pressure water streams from any angle. This targeted environmental protection ensures uninterrupted tracking performance during heavy rainstorms, humid weather, and windy, dust-heavy conditions.

       [ Heavy Rubber Carrying Handle ]
         ___________________________
        /                           \
       /   _______________________   \

      |   |                       |   |
      |   |  3.5" TFT Color Screen|   |
      |   |_______________________|   |
      |                               |
      |    [1] [2] [3]    ( O )       | <--- Scratch-Resistant
      |    [4] [5] [6]   Optical      |      Fingerprint Sensor
      |    [7] [8] [9]   Scanner      |
      |    [*] [0] [#]                |
      |_______________________________|
       \_____________________________/
         [ Shockproof Rubber Armor ]

Time and Attendance Biometric Mobile System. Shock Absorbing Armor Casing

The internal electronics are protected by a thick, shock-absorbing rubber-coated outer protective casing. This impact-resistant layout minimizes structural stress from rough handling and transport vibrations. The protective housing is field-tested to survive accidental drops from heights up to 1 metre onto hard packed earth or concrete floors. This drop protection drastically drops repair costs and prevents workflow disruptions caused by equipment damage.

Ultimate Field Portability

Moving tracking equipment across vast job sites is easy thanks to the integrated, heavy-duty top rubber carrying handle. The handle provides a secure grip for managers walking across rough terrain or climbing scaffolding. The physical dimensions are optimized for easy transport, allowing supervisors to move the terminal between vehicle cabins, equipment trailers, and outdoor check-in stations easily.

Time and Attendance Biometric Mobile System. Advanced Wireless Communication and Cloud Connectivity

Cellular and Local Network Flexibility

The device cuts the cord to traditional IT rooms by offering diverse wireless communication configurations tailored for off-grid operations. Users can choose configurations featuring built-in Wi-Fi network cards, 3G WCDMA modules, or upgraded 4G LTE cellular modems.

These mobile data links let the device maintain consistent connections with central servers even when deployed miles away from hardwired offices. For locations completely lacking wireless coverage, managers can use the built-in TCP/IP Ethernet port or a USB-host slot to manually download logs using a standard flash drive.

ADMS Cloud Synchronization

The Time and Attendance Biometric Mobile System. comes equipped with ZKTeco’s native Automatic Data Master System (ADMS) firmware. This push-technology protocol connects the device directly to centralized web-based attendance software, such as ZKBioTime.

Instead of requiring manual log pull requests at the end of the week, the ADMS system pushes punch records to your cloud database automatically in real time. This automated pipeline gives payroll teams and operations managers instant access to workforce data, making it easier to track project hours and monitor unauthorized overtime instantly.

Time and Attendance Biometric Mobile System. Key Business Benefits and Operational Advantages

  • Eliminates Buddy Punching: Biometric verification ensures employees must be physically present to log hours, Time and Attendance Biometric Mobile System helps protect your payroll from time fraud.
  • Reduces Admin Workloads: Automated real-time data syncs eliminate manual data entry, reducing human processing errors before payroll runs.
  • Lowers Total Cost of Ownership: The durable, impact-tested IP65 casing stands up to extreme conditions, reducing hardware replacement costs.
  • Simplifies Off-Grid Deployments: The internal 7,600 mAh battery keeps the device running for days without main grid power, perfect for remote sites.
  • Supports Large Workforces: The massive 50,000-user database allows companies to manage sprawling enterprises with a single, unified terminal fleet.

Time and Attendance Biometric Mobile System. Target Industry Implementations

Construction and Engineering Sectors

Civil engineering and commercial construction projects feature shifting work perimeters, heavy dust, and temporary power setups. This portable unit can be positioned at central site entrances or moved alongside crews as phases progress. The rubberized armor resists impacts from tool drops and construction debris, keeping your data collection online.

Commercial Agriculture and Forestry

Large agricultural operations manage hundreds of seasonal workers across vast geographic areas. Supervisors can carry this terminal directly to harvesting fields in the back of utility vehicles. Its dustproof seals prevent fine soil particles from damaging internal boards, while the high-capacity battery provides multi-day power away from charging stations.

Mining and Extraction Sites

Surface mining, quarry operations, and oil exploration fields present harsh conditions for digital hardware. The IP65 water-resistance rating ensures reliable shift tracking through mud, sludge, and heavy downpours. The high-contrast 3.5-inch color screen stays easily readable under direct sunlight or low-light shift changes.

Time and Attendance Biometric Mobile System. Frequently Asked Questions

Can this terminal read damaged or dirty fingers?

Yes, the advanced optical sensor combines with the ZKFinger VX10.0 algorithm to accurately scan worn, dry, or wet fingerprints. However, wiping off heavy mud or thick grease before scanning is recommended to keep the sensor glass clean and running at top speed.

How long does the internal battery last on a single charge?

The high-capacity 7,600 mAh lithium-ion battery provides extended autonomous runtime. Exact battery life varies based on your chosen network settings (such as continuous 3G/4G tracking vs. periodic Wi-Fi syncing) and your daily scan volumes, but it easily Powers through multi-day field operations.

What payroll and HR software platforms are compatible?

The terminal integrates directly with ZKBioTime and other major ZKTeco management platforms via ADMS. The software can export cleanly formatted data files (such as CSV, XLS, or TXT) to blend smoothly into existing third-party ERP systems and payroll engines.
